We successfully cope with tasks of varying complexity, provide long-term guarantees and regularly master new technologies.

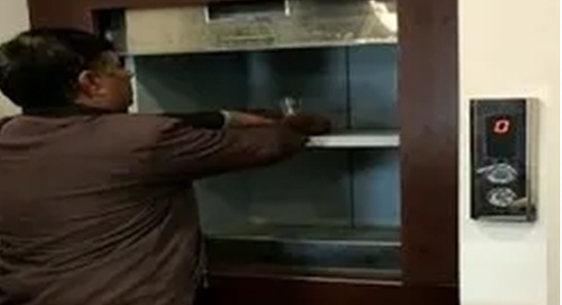

| Technical Compliance | KITCHEN DUMBWAITER LIFT MODEL BTI H-002 |
|---|---|
| Drive System | HYDRULIC PUMP DRIVE |
| POWER REQUIRED | 220V – 414V Hz |
| Rated Speed | 0.15 – 1.00 m/s |
| Rated Load | Up-to 250 KG |
| Travel Height | Up-to 12000 MM |
| Number of Doors | Max 10 Door per lift |
| Number of Stops | Max 8 Stops per Lift |
| Pit | 250 MM ( NO PIT IS REQUIRED IN CASE OF THERSHOLD OF RAMP) |
| Shaft Top Height | 2700 MM EXT. SHAFT |
| Platform Control | AUTOMATIC (ONE TOUCH) WITH CALL RESVARSTION |
| Environment | INDOOR-OUTDOOR |
| Emergency Lowering | BATTERY OPERATED EMERGENCY LOWERING |
| Control Voltage | POWER 415VOLT/50Hz /24V |
Downlaod CATALOG BTI LIFT
