We successfully cope with tasks of varying complexity, provide long-term guarantees and regularly master new technologies.

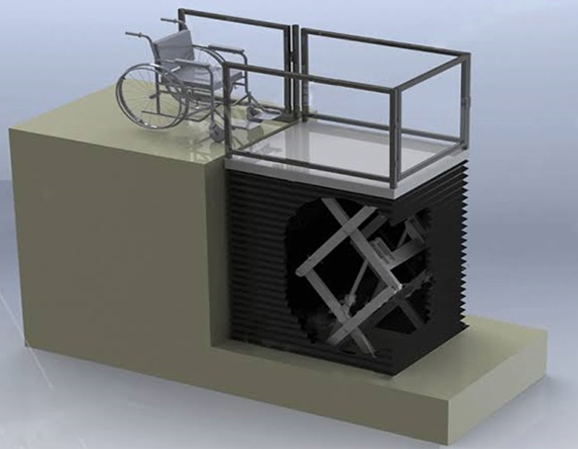

| Technical Compliance | HYDRAULIC WHEELCHAIR LIFT GEARED HYD PUMP7 NO. MODEL BTI PS-04 |
|---|---|
| Drive System | HYDRULIC PUMP DRIVE/ ROPE SEAFTY 3 NO. |
| POWER REQUIRED | 220V – 415V Hz |
| Rated Speed | 0.12– 0.150 m/s |
| Rated Load | Up-to 450 KG |
| Travel Height | Up-to 4000 MM |
| Number of Doors | Max 3 Door per lift |
| Number of Stops | Max 3 Stops per Lift |
| Pit | 70MM ( NO PIT IS REQUIRED IN CASE OF THERSHOLD OF RAMP) |
| Shaft Top Height | 1500 MM EXT. SHAFT |
| Platform Control | PUSH BOTTON |
| Environment | INDOOR-OUTDOOR |
| Emergency Lowering | BATTERY OPERATED EMERGENCY LOWERING |
| Control Voltage | 220V/415V/50Hzx |
