We successfully cope with tasks of varying complexity, provide long-term guarantees and regularly master new technologies.

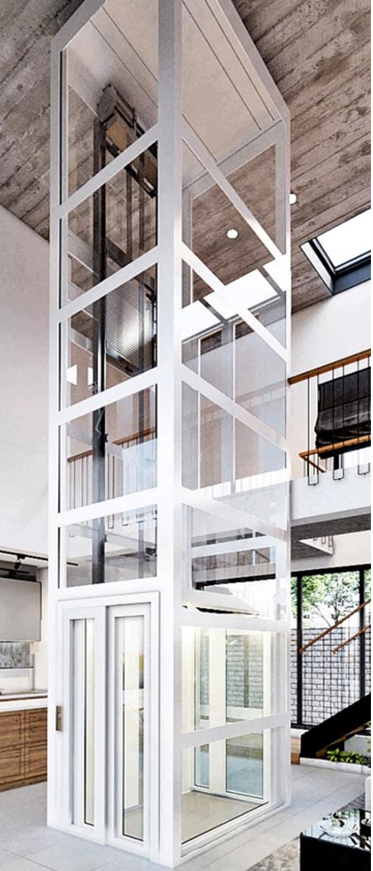

| Technical Compliance | HYDRAULIC STACTURE ELEVATORS MODEL BTI H-002 |
|---|---|
| Drive System | HYDRULIC PUMP DRIVE |
| POWER REQUIRED | 220V – 414V Hz |
| Rated Speed | 0.15 – 1.00 m/s |
| Rated Load | Up-to 400 KG |
| Travel Height | Up-to 14000 MM |
| Number of Doors | Max 08 Door per lift |
| Number of Stops | Max 8 Stops per Lift |
| Pit | 150 MM ( NO PIT IS REQUIRED IN CASE OF THERSHOLD OF RAMP) |
| Shaft Top Height | 2700 MM EXT. SHAFT |
| Platform Control | AUTOMATIC (ONE TOUCH) WITH CALL RESVARSTION |
| Environment | INDOOR-OUTDOOR |
| Emergency Lowering | BATTERY OPERATED EMERGENCY LOWERING ARD SYTEMS |
| Control Voltage | 415/220VOLT/50Hz/24V |
Downlaod CATALOG BTI LIFT
